Understanding Lidar: A Comprehensive Guide to its Functionality

Biodiversity marine mammal identification from Seawatch Buoy Image.png

Published

02 Jul 2025

Lidar technology uses rapid laser pulses to create highly accurate 3D maps of natural and built environments.

At Fugro, we deploy airborne, terrestrial, and bathymetric lidar systems to capture precise spatial data for diverse applications—ranging from infrastructure planning to environmental monitoring.

This article explores lidar’s history, how it works, its versatile uses, and Fugro’s expertise driving innovation in geospatial intelligence.

Introduction to Lidar Technology

Lidar technology is a cutting-edge remote sensing method that uses rapid laser pulses to measure distances with exceptional accuracy. By emitting these pulses and measuring their return time, lidar systems calculate precise locations, producing detailed lidar point clouds — dense collections of millions of discrete points that form highly accurate 3D maps of natural and manmade environments across land and water.

At Fugro, we deploy lidar sensors on airborne, terrestrial, mobile and marine platforms to collect lidar data supporting a wide range of infrastructure, environmental, and engineering projects. Whether scanning from the air, ground, or water, lidar technology provides millimetre precision that helps project teams plan, design, and manage assets with confidence.

Operating on the Time of Flight principle, lidar instruments measure the time it takes for each pulsed laser or laser beam to reflect off a surface and return. This generates comprehensive point cloud data which can be processed into digital elevation models (DEMs) and digital terrain models (DTMs), delivering valuable spatial context for decision-making.

Different types of lidar systems serve various environments:

  • Airborne lidar, mounted on survey aircrafts, drones, or helicopters, excels at capturing broad topographic lidar maps across challenging or remote regions.

  • Terrestrial lidar instruments capture detailed scans of buildings, industrial sites, and complex infrastructure at ground level.

  • Bathymetric lidar uses water-penetrating green light to generate lidar maps of shallow rivers, coastal zones, and seabeds, essential for shoreline mapping and marine habitat conservation.

By seamlessly integrating topographic and bathymetric lidar data, Fugro generates high-resolution coastal elevation models that support flood risk analysis, coastal engineering, and sustainable marine development.

Beyond terrain elevation, lidar can quantify vegetation structure, measure atmospheric particles like rain droplets, and support atmospheric wind velocity studies. Its speed, accuracy, and versatility make it indispensable across urban planning, renewable energy siting, storm surge modelling, archaeology, meteorology, and autonomous navigation.

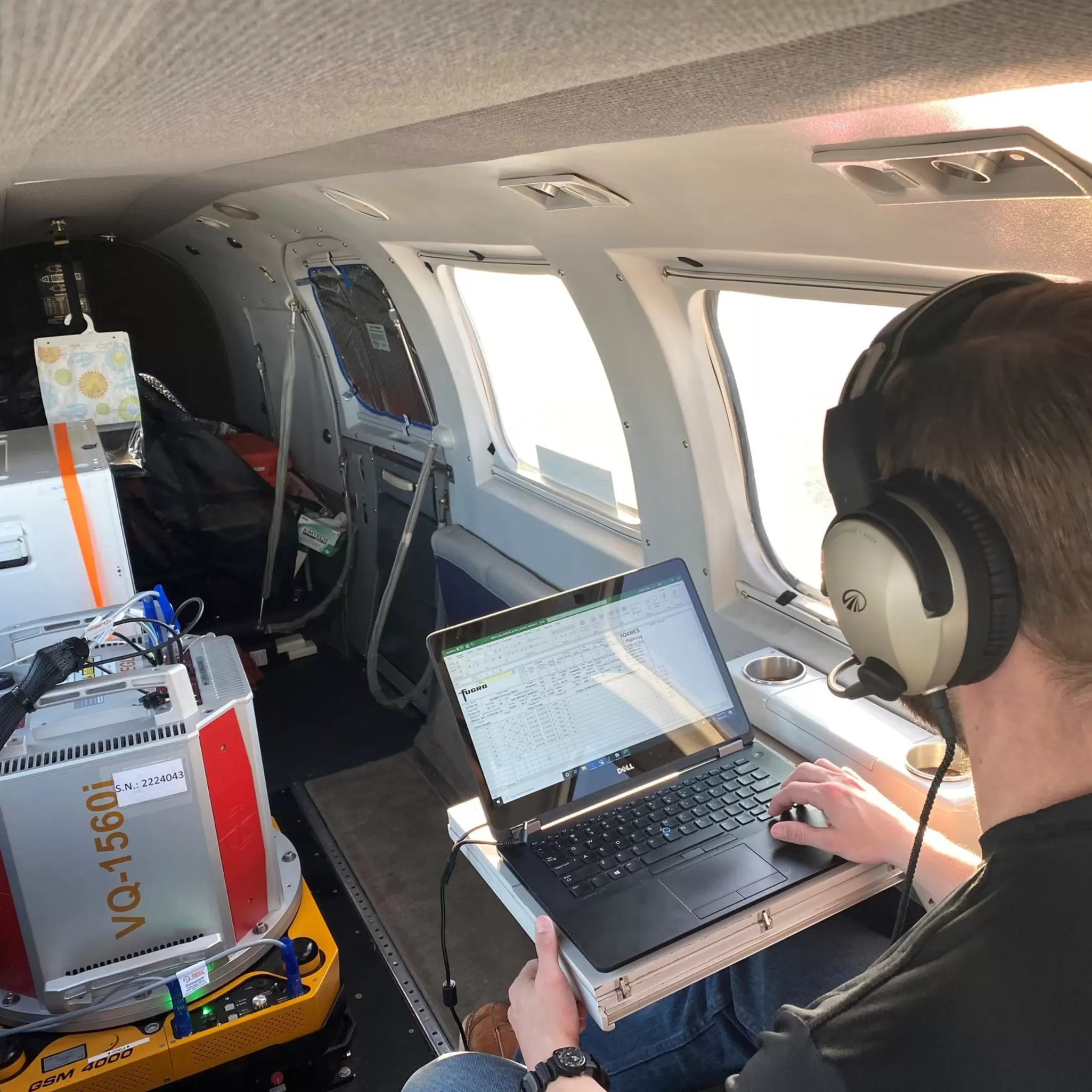

Airbourne lidar capture over the Tuvalu Islands 02.jpg

Airbourne lidar capture over the Tuvalu Islands

History and Development of Lidar Sensors

Lidar technology’s roots stretch far back, evolving from early experiments with light reflection to today’s cutting-edge remote sensing systems. This section outlines the major milestones in lidar’s development, showing how it transformed from a scientific curiosity into an indispensable geospatial tool.

Early Use of Light for Measurement and Strategy

Using light to measure distance and space has roots stretching back thousands of years. For example, Archimedes is said to have used mirrors to focus sunlight and ignite enemy ships during the Siege of Syracuse in 212 BC. While debated, this story illustrates ancient recognition of the power of reflected light for practical purposes.

During these times, early optical methods hinted at measuring distance and spatial relationships, laying the conceptual groundwork for later technological advances.

18th Century: Foundations in Optical Rangefinding and Radio Detection

The 1700s introduced the first true rangefinding devices using mirrors and lenses. In 1769, James Watt developed an optical rangefinder to aid canal construction by measuring distances accurately. These early instruments used principles similar to modern lidar—measuring light reflection to calculate spatial information.

At the same time, parallel developments in radio detection technology established additional methods of remote sensing, complementing lidar’s future capabilities in environmental and atmospheric data collection.

The Laser Scanner Breakthrough and Early Lidar Instruments

The invention of the laser in 1960 revolutionised distance measurement by providing a focused, coherent source of laser light. This breakthrough enabled the first practical lidar instruments.

Hughes Aircraft developed the earliest lidar systems, originally designed to track satellites by measuring the time delay of pulsed laser reflections—a method known as the Time of Flight principle. This technique forms the core of modern lidar, producing precise distance measurements by timing how long it takes emitted light pulses to reflect back from surfaces.

Lidar Expansion: Environmental and Topographic Lidar Mapping (1980s–2000s)

By the 1980s, lidar had moved into widespread use for environmental monitoring and mapping. Airborne lidar sensors were mounted on aircraft to rapidly scan large landscapes, producing detailed lidar point clouds representing terrain, vegetation, and urban features.

Terrestrial and bathymetric lidar systems expanded applications further, enabling precise ground-level scans of infrastructure and water-penetrating green laser pulses to map shallow seabeds and coastal zones. These developments supported critical tasks such as coastline erosion monitoring, forest management, and urban planning.

Modern Era: Miniaturisation and Everyday Applications

Recent decades have seen lidar technology become smaller, more affordable, and more accessible. Mobile lidar systems mounted on vehicles or drones facilitate infrastructure inspection and emergency response, while integration with smartphones brings lidar to consumer-level augmented reality and imaging.

Autonomous vehicles and drones rely heavily on lidar’s high-resolution point cloud data to detect objects and navigate safely in complex environments.

The Future of Lidar

Today, lidar continues to evolve with advances in sensor technology, data analytics, and machine learning. These innovations are enhancing the precision and speed of data collection, expanding applications from underwater mapping to real-time environmental monitoring.

Lidar’s rich history—from ancient experiments with light to a core modern technology—highlights its enduring role in improving our understanding of both natural and manmade environments.

In the marine domain, lidar is poised to play a central role in addressing coastal resilience, climate adaptation, and sustainable development. Emerging systems capable of deeper penetration, higher density sampling, and seamless integration with satellite and sonar data will enable more detailed seafloor mapping, improved flood modelling, and real-time monitoring of dynamic coastal environments — opening new frontiers in offshore infrastructure planning, marine conservation, and disaster risk reduction.

Fugro FLI-MAP is used to capture critical lidar Geo.jpg

Fugro FLI-MAP is used to capture critical lidar Geo

How Lidar Works

Lidar technology operates on the same core principles across environments, but its application differs depending on whether it's measuring land or water. By adapting to surface conditions and using specialised laser wavelengths, lidar can generate precise 3D models of both terrestrial and underwater landscapes.

How Lidar Works on Land

Modern lidar systems emit millions of laser pulses every second from precisely calibrated sensors mounted on aircraft, drones, or ground-based platforms. These pulses travel outward, striking surfaces like soil, rock, vegetation, or buildings. By measuring the time it takes for each pulse to return — a process known as Time of Flight — the system calculates the exact distance to that surface.

Each pulse becomes a point in a dense 3D point cloud, which captures the contours and features of the landscape with remarkable detail. This allows project teams to visualise terrain, infrastructure, and vegetation in high resolution, even in areas that are difficult to access or densely vegetated.

Once collected, the data is processed to remove noise, classify features, and fill gaps, resulting in accurate products such as Digital Terrain Models (DTMs) and Digital Elevation Models (DEMs). These models support a wide range of applications — from infrastructure planning and slope analysis to vegetation studies and environmental monitoring.

How Lidar Works in Water

In marine and coastal environments, the principles of lidar remain the same — but the technology adapts to meet the challenges of mapping beneath the water’s surface. Bathymetric lidar uses green laser light, which can penetrate clear, shallow water to measure the elevation of both the water surface and the seabed below.

This dual return allows the system to capture highly detailed underwater topography, even in areas like estuaries, coral reefs, and nearshore zones where traditional hydrographic surveys may be limited. Mounted on low-flying aircraft, bathymetric lidar sensors gather vast amounts of data in short timeframes, making them ideal for covering large or dynamic coastal areas.

The data is then corrected for water depth, wave movement, and refraction to produce accurate 3D models of submerged landscapes. These models are crucial for applications such as flood risk analysis, coastal erosion monitoring, navigation safety, and marine habitat mapping.

Seawatch wind LiDAR buoy in Throndheim Norway.jpg

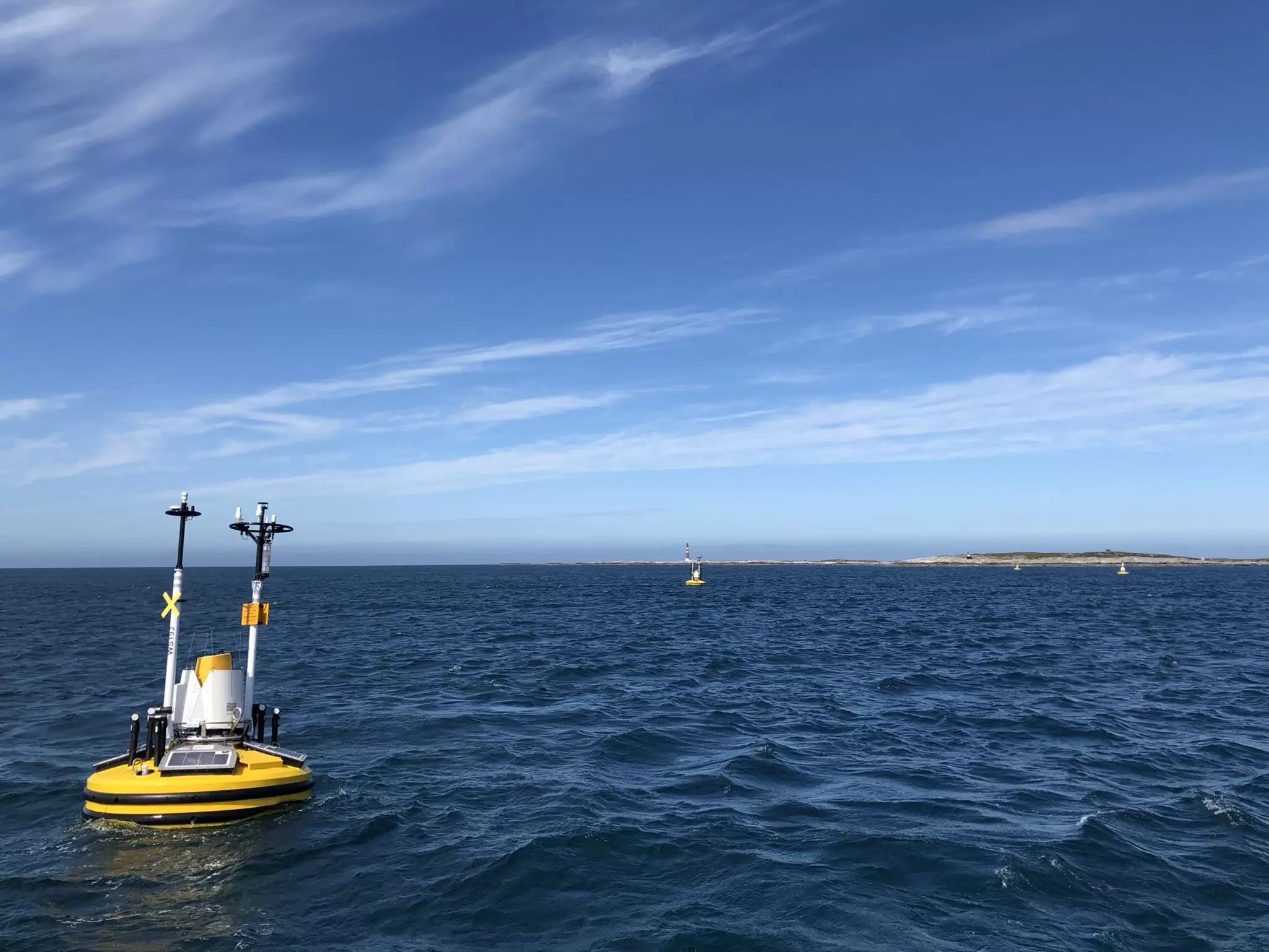

Seawatch wind LiDAR buoy in Throndheim Norway

Lidar Data Applications

Lidar technology is a cornerstone of modern land mapping and surveying. Its ability to capture precise, high-resolution spatial data enables professionals to understand terrain, infrastructure, and natural features in remarkable detail.

At Fugro, we harness lidar’s power to support a wide range of projects requiring accurate terrain models and comprehensive environmental insight.

Land Mapping and Terrain Analysis

One primary use of lidar is creating Digital Terrain Models (DTMs) and Digital Elevation Models (DEMs). These models provide detailed representations of the earth’s surface, capturing subtle elevation variations, slopes, and natural features essential for land development, infrastructure planning, and environmental assessments.

Fugro’s lidar surveys offer millimetre-level accuracy, enabling precise mapping of complex landscapes — from urban environments to remote rural areas. Whether for site selection, volume calculations, or change detection, lidar data delivers reliable, actionable intelligence.

Marine Lidar Mapping

Extending the power of lidar into marine environments, Fugro employs advanced bathymetric lidar systems to map coastal and nearshore zones with exceptional clarity. This airborne technique uses green wavelength laser pulses capable of penetrating water to accurately measure seafloor elevations in shallow, clear-water regions—typically to depths of up to 50 metres, depending on water clarity.

Fugro’s marine lidar surveys are especially effective for areas that are difficult to access by vessel, such as surf zones, coral reefs, and intertidal flats. These datasets are instrumental in bridging the gap between land-based topographic surveys and deepwater bathymetric data, creating seamless coastal elevation models that support a broad spectrum of marine and coastal initiatives.

Applications range from nautical charting and navigational safety to sediment transport modelling, shoreline change analysis, and habitat mapping. In infrastructure contexts, marine lidar provides essential input for port development, offshore wind site assessments, cable landfall studies for oil and gas, and coastal defence design. The ability to collect high-density elevation data over large areas in a matter of hours ensures timely insights, even in rapidly changing or disaster-affected environments.

By integrating marine lidar with aerial imagery and traditional hydrographic surveys, Fugro delivers comprehensive coastal intelligence—enabling clients to make data-driven decisions that balance development needs with environmental stewardship.

Infrastructure Planning and Monitoring

In infrastructure projects, lidar data forms the foundation for design and construction. Accurate terrain mapping helps engineers evaluate ground conditions, plan earthworks, and monitor construction progress. Fugro’s lidar surveys assist clients with pipeline routing, road construction, and cable installations by providing clear spatial context and up-to-date site information.

The ability to rapidly collect large volumes of data from the air means that even challenging or inaccessible locations can be surveyed efficiently, reducing risk and improving project timelines.

Environmental and Coastal Surveying

Lidar plays a vital role in environmental monitoring, particularly in coastal and riverine areas. Fugro applies bathymetric lidar, which uses water-penetrating green laser pulses, to map shallow seabeds, shorelines, and estuaries. This supports coastal management, erosion monitoring, and habitat conservation efforts.

By combining topographic and bathymetric lidar data, Fugro creates integrated 3D models that inform flood risk assessments and hydrodynamic modelling — critical tools for climate resilience and sustainable development.

Coastal lidar data St Maarten.jpg

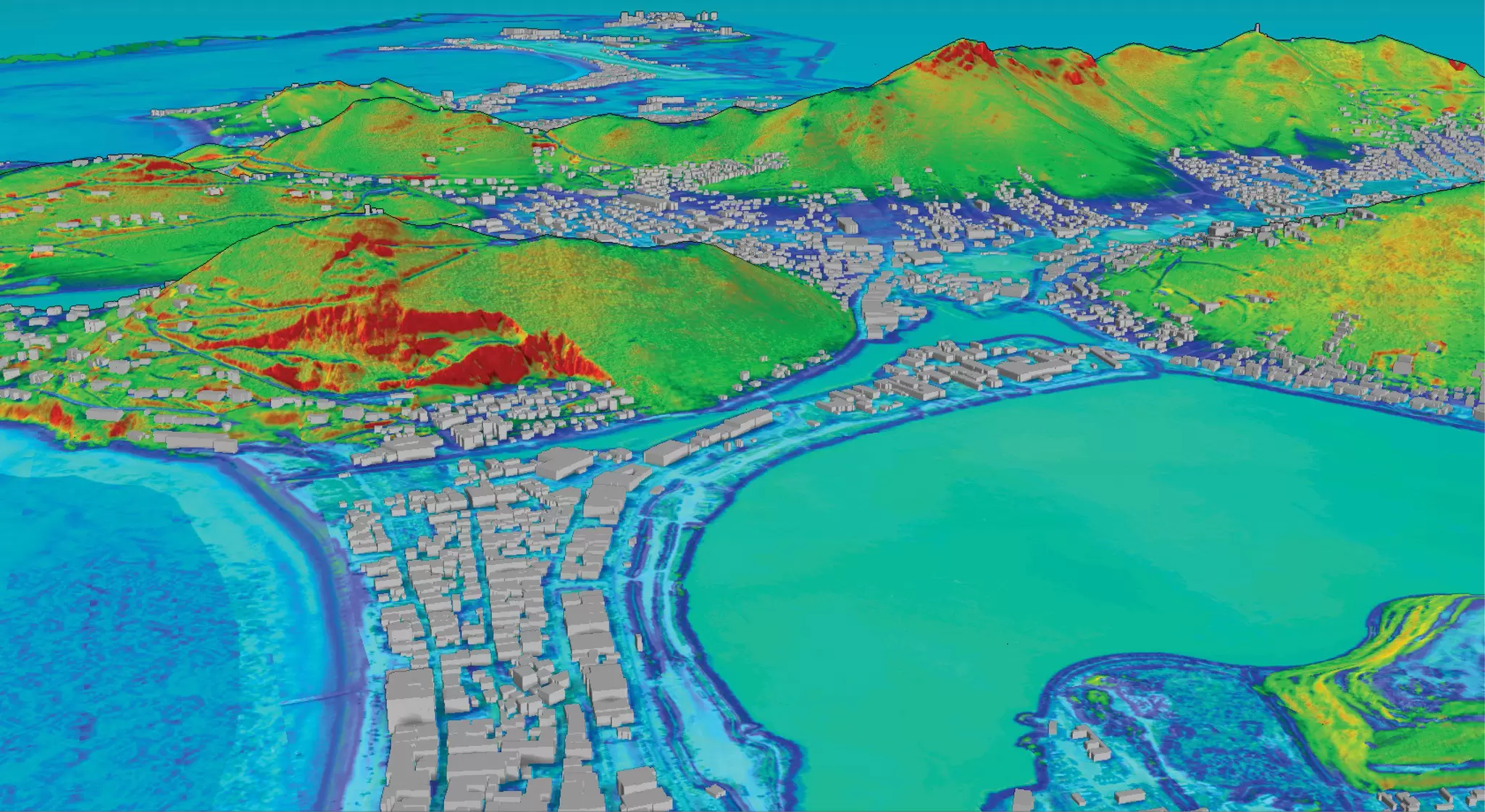

Coastal lidar data St Maarten

Supporting Renewable Energy and Urban Planning

Lidar’s precise terrain data is invaluable for renewable energy projects, such as wind and solar farm siting. Understanding land contours and surface conditions ensures optimal placement and efficient resource use.

In urban planning, lidar data helps map existing infrastructure and assess development impacts, supporting smarter, more sustainable growth.

Lidar’s unmatched accuracy and versatility make it indispensable for land mapping and surveying applications. At Fugro, we use this technology to provide the detailed spatial information clients need to plan, design, and manage projects with confidence and precision.

Lidar Data Collection and Processing

Fugro employs a wide range of advanced lidar systems designed to capture high-density, high-precision spatial data. Our approach uses multiple platforms to suit varied project environments, ensuring we collect comprehensive and accurate data tailored to your specific needs.

Platforms and Sensors

Our lidar data collection utilises both airborne and terrestrial platforms, each equipped with specialised sensors that emit rapid, precisely timed laser pulses. These pulses enable the capture of fine spatial details at millimetre accuracy.

Key platforms include:

  • Airborne laser platforms: Fixed-wing aircraft, helicopters, and drones that can rapidly survey large or hard-to-reach areas from above, capturing topographic and bathymetric data.

  • Terrestrial laser scanners: Mounted on tripods, vehicles, or handheld devices to capture detailed ground-level scans of infrastructure, buildings, and natural terrain.

  • Uncrewed surface vessels (USVs): Small autonomous or remotely operated boats equipped with lidar and complementary sensors to map shallow coastal waters, rivers, and harbours.

  • Lidar-equipped buoys: Floating platforms used for long-term environmental monitoring, often combining lidar with meteorological or oceanographic sensors to track wave height, aerosol content, and surface conditions.

  • Ship-mounted lidar systems: Installed on research or survey vessels to map coastlines, cliffs, and sea ice, or to complement sonar data in multibeam bathymetric surveys.

Each platform is chosen based on project requirements, balancing coverage area, resolution, and environmental constraints.

How Lidar Pulses Interact with the Environment

Lidar systems emit millions of laser pulses per second, which travel through the atmosphere until they encounter a surface. Depending on the surface characteristics, these pulses reflect back to the sensor, providing a precise time measurement used to calculate exact distances.

  • Pulses reflect off diverse features such as vegetation, buildings, and terrain.

  • Bathymetric lidar uses specialised green laser pulses that penetrate water, enabling mapping of underwater environments like shallow rivers, coastal zones, and seabeds.

  • This interaction with different surfaces produces a vast amount of discrete spatial data points with exceptional accuracy.

Lidar Point Clouds and Data Quality

The data returned to the sensor forms what is called a lidar point cloud — a dense collection of millions to billions of individual points representing spatial features. However, raw lidar data also contains noise, such as atmospheric particles or transient objects, which can degrade data quality if left unfiltered.

To ensure reliability, Fugro applies:

  • Advanced filtering algorithms that remove noise and irrelevant points.

  • Classification processes that categorise points into types such as ground, vegetation, or manmade structures.

  • Vertical accuracy enhancements that refine elevation data, essential for precise modelling.

This rigorous quality control ensures that the data is both accurate and meaningful for downstream analysis.

Data Processing and Modelling

Once filtered, the point cloud undergoes interpolation and surface modelling techniques to generate continuous, seamless surfaces. These surfaces form the basis for critical geospatial products such as:

Digital Elevation Models (DEMs): Depicting the bare earth surface without vegetation or manmade structures.

Digital Terrain Models (DTMs): Highlighting landform features such as ridges, slopes, and breaks essential for engineering, environmental assessments, and planning.

These models provide detailed terrain information, allowing engineers, planners, and environmental scientists to make informed decisions based on precise ground conditions.

Data Integration and Final Products

Fugro enriches lidar data by integrating it with other geospatial datasets, creating multi-dimensional insights that extend beyond elevation alone. These complementary sources include:

  • Multispectral and hyperspectral imagery

  • Satellite remote sensing data

  • Radio detection and ranging systems

  • The integration produces highly detailed, geo-referenced maps and 3D models tailored to support a wide variety of applications such as:

  • Storm surge and hydrodynamic modelling

  • Infrastructure design and monitoring

  • Emergency response and disaster management

Our end-to-end workflow—from data acquisition through processing to quality assurance—ensures that clients receive spatial intelligence that is both actionable and tailored to the unique challenges of their projects.

Banedanmark LiDAR Scanning 2020 - PCC.jpg

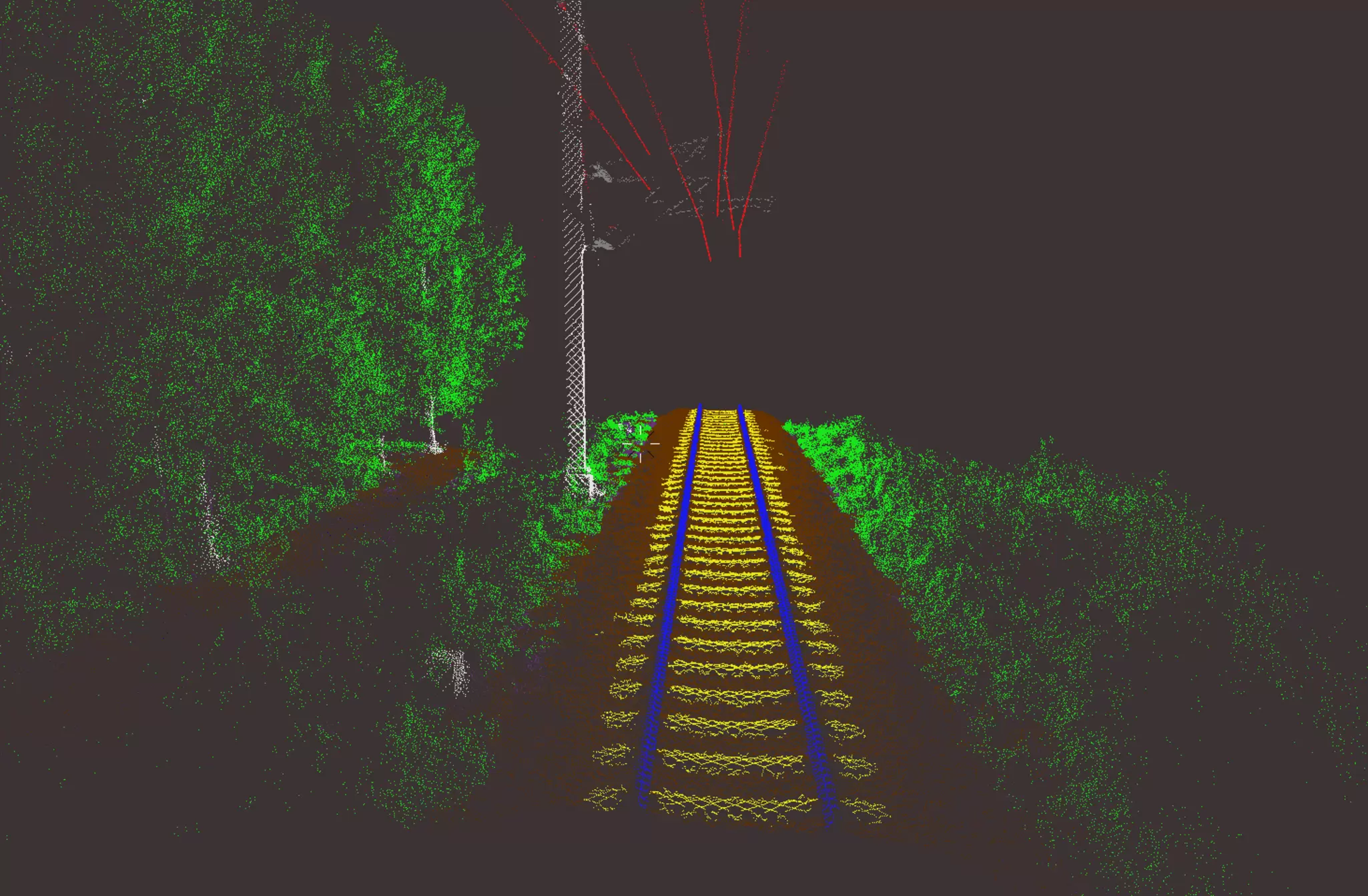

Banedanmark LiDAR Scanning 2020 - PCC

Digital Terrain Models

Digital Terrain Models (DTMs) are detailed 3D representations of the earth’s bare surface, created using lidar data. By filtering out vegetation, buildings, and other objects, DTMs focus on natural ground elevation, providing an accurate foundation for a wide range of applications.

Lidar’s high-resolution data allows precise mapping of terrain features such as slopes, valleys, and ridges. This makes DTMs invaluable in land surveying, where understanding ground conditions is critical for construction, infrastructure design, and resource management.

Urban planners rely on DTMs to inform development projects, ensuring buildings, roads, and utilities are designed with terrain in mind. Environmental monitoring uses these models to assess risks such as flood zones, erosion patterns, and habitat conditions.

Fugro’s lidar-derived DTMs offer millimetre-level accuracy, enabling clients to make informed decisions based on reliable terrain data.

Digital Elevation Models

Digital Elevation Models (DEMs) are 3D representations of the earth’s surface elevation, generated from lidar data and other remote sensing sources. Unlike Digital Terrain Models (DTMs), which depict the bare-earth surface by removing vegetation and structures, DEMs include the natural terrain along with surface features like vegetation and manmade objects.

DEMs provide valuable information for a variety of applications, including hydrological modelling, flood risk assessment, and landscape visualisation. They help visualise overall land surface elevation and terrain morphology, supporting decision-making in environmental management, infrastructure planning, and agriculture.

Fugro’s lidar-derived DEMs deliver high-resolution, accurate elevation data, enabling clients to assess land surface conditions comprehensively and plan projects with confidence.

Fugro’s Expertise in Lidar

Fugro has been a global leader in lidar innovation for decades, combining extensive experience with the latest technology advancements to deliver unparalleled spatial intelligence. Our expertise spans land and marine environments across multiple industries and geographic regions, enabling us to tackle a broad spectrum of geospatial challenges.

Key Strengths

Cutting-edge sensor technology: We utilise the newest lidar sensors, including mobile lidar, airborne laser platforms, terrestrial scanners, and bathymetric lidar systems mounted on aircraft, vessels, USVs, and buoys. This ensures the highest data resolution and accuracy across terrestrial and marine domains.

Advanced data processing: Our proprietary workflows clean, filter, and classify massive lidar point cloud datasets, transforming raw data into actionable insights with millimetre precision.

Multi-sector experience: Our lidar solutions support diverse sectors such as:

  • Oil and gas exploration, pipeline routing, and offshore infrastructure monitoring

  • Renewable energy project siting (onshore and offshore) and environmental assessments

  • Urban development and infrastructure planning

  • Coastal protection, bathymetric mapping, and shoreline change detection

  • Archaeological feature detection and natural resource management

  • Habitat mapping and marine environmental monitoring

Integrated geospatial solutions: Beyond lidar, Fugro combines complementary technologies such as:

  • Multispectral and hyperspectral imaging

  • Drone photogrammetry

  • Satellite remote sensing

  • Multibeam echosounders and subsea positioning systems for integrated marine mapping

Global reach and local knowledge: Our teams operate worldwide, delivering tailored lidar products that account for local environmental, regulatory, and project-specific requirements —whether in dense cities, remote deserts, or dynamic coastal zones.

Benefits for Clients

  • Optimised project planning through highly accurate terrain and infrastructure models

  • Risk reduction via early detection of site challenges and precise environmental monitoring

  • Enhanced environmental stewardship through detailed mapping of sensitive natural and manmade environments

  • Cost savings by streamlining data acquisition and improving decision-making efficiency

Bathymetric and topo lidar of Tuvalu islands.jpg

Bathymetric and topo lidar of Tuvalu islands

The Future of Lidar at Fugro

Lidar technology continues to evolve at a rapid pace, driven by innovations in hardware, software, and data science. Fugro is at the forefront of harnessing these advancements to expand the capabilities and applications of lidar for our clients.

Emerging Trends and Developments:

Enhanced sensor capabilities: Next generation lidar systems will feature improved point density, faster data collection rates, and better performance in challenging conditions like dense forests or urban canyons.

Real-time data integration: We are developing solutions to feed live lidar data into digital twin platforms, enabling dynamic, real-time monitoring of infrastructure, construction sites, and environmental changes.

Expanded bathymetric lidar applications: Continued investment in water penetrating green light technology will deepen our ability to map underwater environments accurately, supporting coastal resilience and marine infrastructure projects.

Artificial intelligence and machine learning: Automated classification and feature extraction will accelerate data processing and improve the precision of lidar generated products.

Multi-sensor fusion: Combining lidar with radar, multispectral, and other remote sensing modalities will provide richer datasets for comprehensive spatial analysis.

Fugro’s Commitment:

  • Deliver innovative, client-focused lidar solutions that evolve alongside technological advancements.

  • Support sustainable development goals by enabling smarter environmental management and infrastructure planning.

  • Continuously invest in research, development, and training to maintain our position as a leader in geospatial data acquisition and analysis.

  • Foster partnerships with technology providers and academic institutions to stay ahead of emerging trends.

By integrating these cutting-edge technologies and approaches, Fugro ensures that lidar remains a vital, forward-looking tool in solving complex spatial challenges and driving better outcomes for our clients worldwide.

Conclusion

Lidar technology has fundamentally reshaped how we capture and interpret spatial data. By harnessing rapid, precise laser beams and measuring their reflections as light pulses, lidar systems generate incredibly detailed point cloud data that reveal the intricacies of both natural landscapes and manmade structures.

From topographic lidar surveys that map rugged terrains to bathymetric lidar that penetrates shallow waters, lidar supports a broad spectrum of critical applications: coastal erosion monitoring, flood risk management, urban infrastructure design, renewable energy site optimisation, and autonomous navigation, among others.

The richness of lidar data collected enables advanced analyses such as storm surge modelling, hydrodynamic modelling, and environmental impact assessments, fostering smarter, more sustainable decision-making.

Fugro’s leadership in deploying cutting-edge lidar instruments and integrating robust data processing techniques ensures that our clients receive spatial products with unparalleled accuracy and resolution. We continuously innovate by expanding capabilities in mobile lidar, real-time data integration, and combining lidar with complementary remote sensing methods.

Whether working in remote wilderness, dense urban environments, or coastal zones, lidar’s versatility, speed, and precision make it an indispensable tool for modern geospatial intelligence.

Partner with Fugro to unlock the full potential of lidar technology and elevate your project with precise, reliable spatial insights that drive success and sustainability.

FAQs

What is lidar and how does it work?

Lidar (Light Detection and Ranging) is a remote sensing method that uses pulsed laser beams emitted by a lidar sensor to measure distances with millimetre precision. By timing the return of each laser pulse reflected from natural and manmade environments, lidar systems create detailed point cloud data representing the land surface and objects.

What kind of data does lidar collect?

Lidar data collected consists of millions of points forming a 3D lidar map or point cloud. This point cloud data enables the creation of digital elevation models (DEMs) and detailed representations of terrain, vegetation, and infrastructure, supporting activities like environmental monitoring and infrastructure planning.

How are airborne lidar systems used?

Airborne systems, such as those mounted on NOAA survey aircraft, capture large-scale topographic data efficiently. These systems scan wide areas using near infrared laser pulses or water-penetrating green lasers for bathymetric mapping, producing high-resolution lidar surveys crucial for soil spatial relationships and coastal management.

Fugro have been developing this technology to improve efficiency and deliver high-resolution lidar data more effectively. In 2020, LADS HD+ technology was developed in Fugro’s laser laboratory in Australia. This technology doubled the laser speed, improve the object detection and swath width. The outcome was improved nautical charting capabilities and coastal zone management.

Another key example of Fugro’s innovation in lidar is RAMMS 2.0 — the world’s only airborne lidar system capable of delivering both high-resolution bathymetry and full water column imaging. RAMMS 2.0 integrates dual-laser technology and machine learning to accelerate data delivery and improve coastal mapping accuracy. Deployed from crewed aircraft and UAVs, the system enables efficient, low-carbon surveying of dynamic nearshore environments—supporting applications from coastal hazard mitigation to marine habitat monitoring.

Can lidar detect objects and support emergency response?

Yes, lidar can detect objects with high accuracy, which is why it is used in autonomous vehicles and emergency response scenarios. Mobile lidar systems mounted on moving vehicles or drones rapidly collect spatial data to aid in navigation and real-time hazard detection.

What advancements are shaping modern lidar work?

Emerging technologies like flash lidar and colidar systems improve speed and data quality. Integrating lidar with other data sources enhances analysis capabilities, enabling soil scientists, NOAA scientists, and urban planners to better understand both natural and manmade environments.

Is lidar technology used in consumer devices?

Yes, lidar sensors are increasingly found in mobile phones, enabling advanced imaging and augmented reality applications by detecting distant objects and mapping surrounding spaces accurately.
